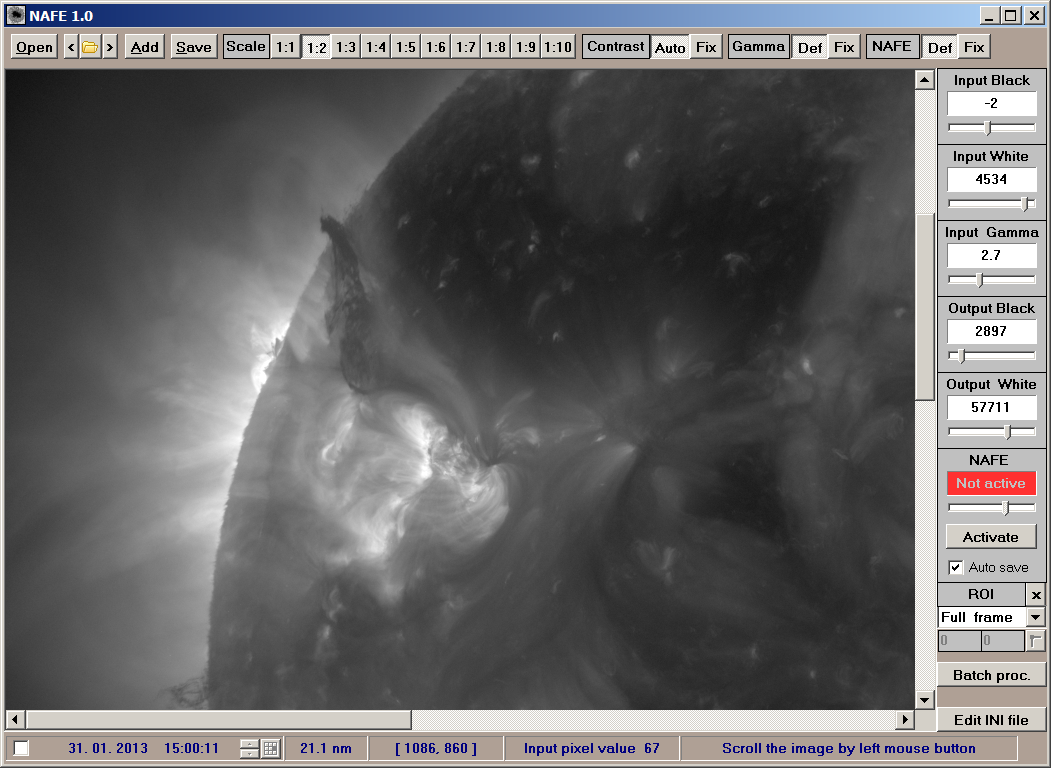

Images viewing

  • The software accepts SDO AIA images in FITS format only (level 1 recommended).
  • Open the first image by means of Open button.
  • Any other image in the same directory may be opened by means of the directory list box which can be displayed by clicking the button with directory icon.
  • Previous/next image in the directory may be opened by means of < > buttons or Page Up/Down keys.
  • Set the viewing scale by means of Scale button array. The scale setting has no influence on image processing. You may switch between 1:1 scale and scale showing the whole image by double-clicking the image (not the ROI).
  • You may scroll the image not only by means of scroll bars but also by mouse - the left mouse button pressed.
