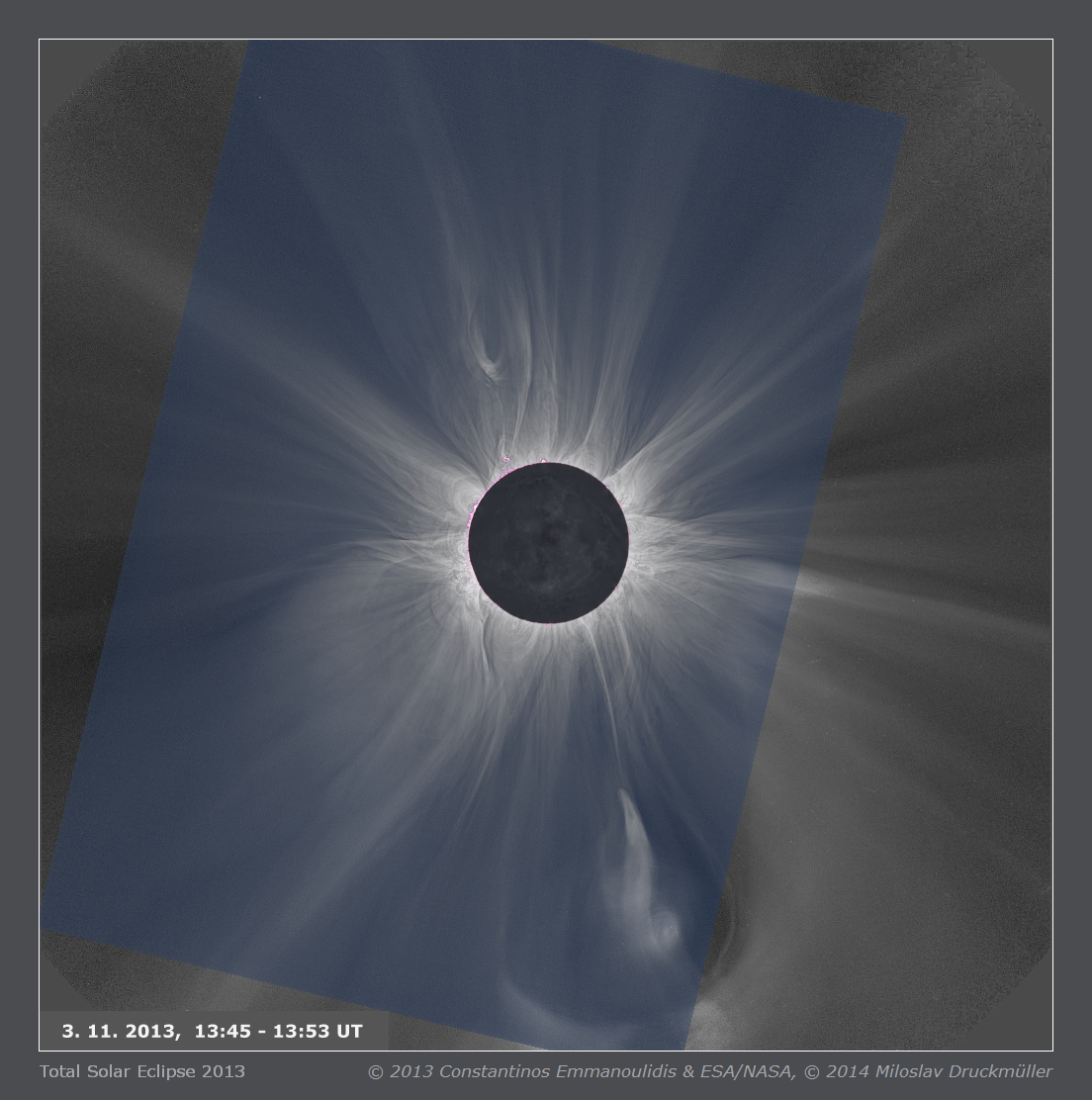

Total solar eclipse image and SOHO LASCO C2 composite

This image is a composition of SOHO LASCO C2 image taken at 13:46 UT with wide-angle total solar eclipse image from Gabon.
Click on the image or on the following reference to display the higher resolution image version (1.1 MB, PNG format).

Date3. 11. 2013
TimeEclipse image: 2nd contact 13:52:40 UT, total eclipse duration 65 s

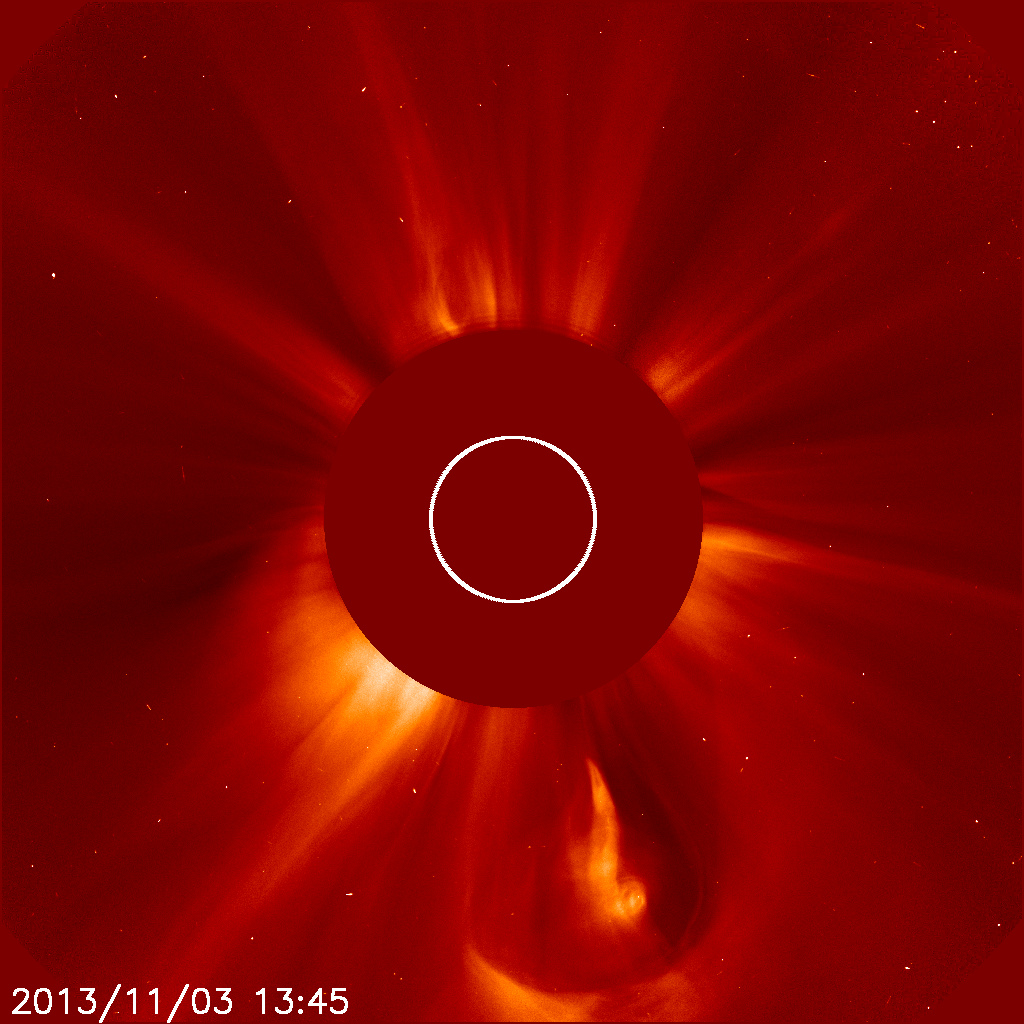

SOHO LASCO C2 image: 13:46 UT
Place50 km far from Lambarene, Gabon
CoordinateS 0° 22' 47",   E 10° 20' 43",  Alt. 78 m
ConditionsClear sky in the vicinity of the Sun (solar altitude above the horizon: 45°)
Optics(1) Takahashi FSQ106N
(2) Takahashi FS60C
Camera(1) Nikon D7100
(2) Canon 350D modif.
Exposure(1) 1/2000 s - 2 s (ISO 100)- computer control Solar Eclipse Maestro
(2) 1/2000 s - 2 s (ISO 100) - computer control Solar Eclipse Maestro
ProcessingComposition of SOHO LASCO C2 and 117 eclipse images, (1) 66 images, (2) 51 images. Eclipse images were calibrated by means of large number of dark frames and flat-fields, aligned by means of phase correlation, composed by means of LDIC 5.0 software, processed using Corona 4.1 in order to visualize coronal structures. Final processing was done using ACC 6.1 software.
Image processing by Miloslav Druckmüller
SoftwareAstro D3F 2.0, PhaseCorr 6.0, LDIC 6.0, Corona 4.1, Sofo ACC 6.1
Copyright© 2013 Constantinos Emmanoulidis, © 2014 Miloslav Druckmüller



Miloslav Druckmüller
Institute of Mathematics, Faculty of Mechanical Engineering
Brno University of Technology, Czech Republic
