NAFE.ini file editting
NAFE.ini file contains processing parameters which are usually not necessary to be changed.
If you intend to modify the NAFE.ini file read carefully the following text because the
correctness of parameters in NAFE.ini file is not checked by the program. Use the

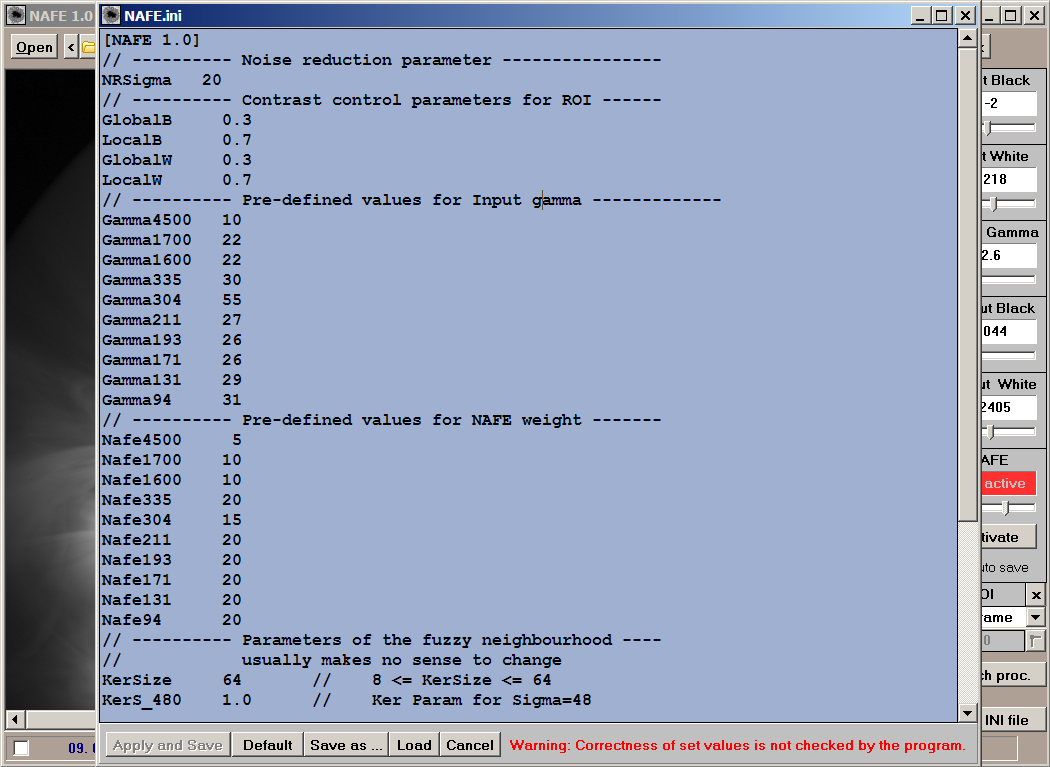

Edit INI file button for opening the NAFE.ini file editor.
NAFE.ini file editor has folloving buttons:
- Apply and Save - applies new parameters setting and overwrites the NAFE.ini file.
- Default - changes all parameter values in editor to default ones (without applying and saving).
- Save as ... - saves the text in editor to a file with extension .ini.
- Load - loads the text from the file with extension .ini.
- Cancel - closes the editor without changing parameters and without changing NAFE.ini file.
If you want to write comments to the NAFE.ini file use // for that purpose. Starting with // the
rest of the line is ignored. NAFE.ini file contains following parameters:
Noise reduction parameter - for more detais see this page.
Contrast control parameters for ROI - for more detais see this page.
- GlobalB
- LocalB
- GlobalW
- LocalW
Pre-defined values of Input gamma for all SDO AIA wavelenghts
- for more detais see this page.
- Gamma4500
- Gamma1700
- Gamma1600
- Gamma335
- Gamma304
- Gamma211
- Gamma193
- Gamma171
- Gamma131
- Gamma94
Pre-defined values for NAFE weight for all SDO AIA wavelenghts
- for more detais see this page.
- Nafe4500
- Nafe1700
- Nafe1600
- Nafe335
- Nafe304
- Nafe211
- Nafe193
- Nafe171
- Nafe131
- Nafe94
Parameters of the fuzzy neighbourhood
KerSize ... NAFE paper formula (4) 2.KerSize + 1 = n
KerS_480 ... NAFE paper formula (12) constant c12
KerS_320 ... NAFE paper formula (12) constant c11
KerS_220 ... NAFE paper formula (12) constant c10
KerS_160 ... NAFE paper formula (12) constant c9
KerS_110 ... NAFE paper formula (12) constant c8
KerS_80 ... NAFE paper formula (12) constant c7
KerS_56 ... NAFE paper formula (12) constant c6
KerS_40 ... NAFE paper formula (12) constant c5
KerS_28 ... NAFE paper formula (12) constant c4
KerS_20 ... NAFE paper formula (12) constant c3
KerS_14 ... NAFE paper formula (12) constant c2
KerS_10 ... NAFE paper formula (12) constant c1
|
